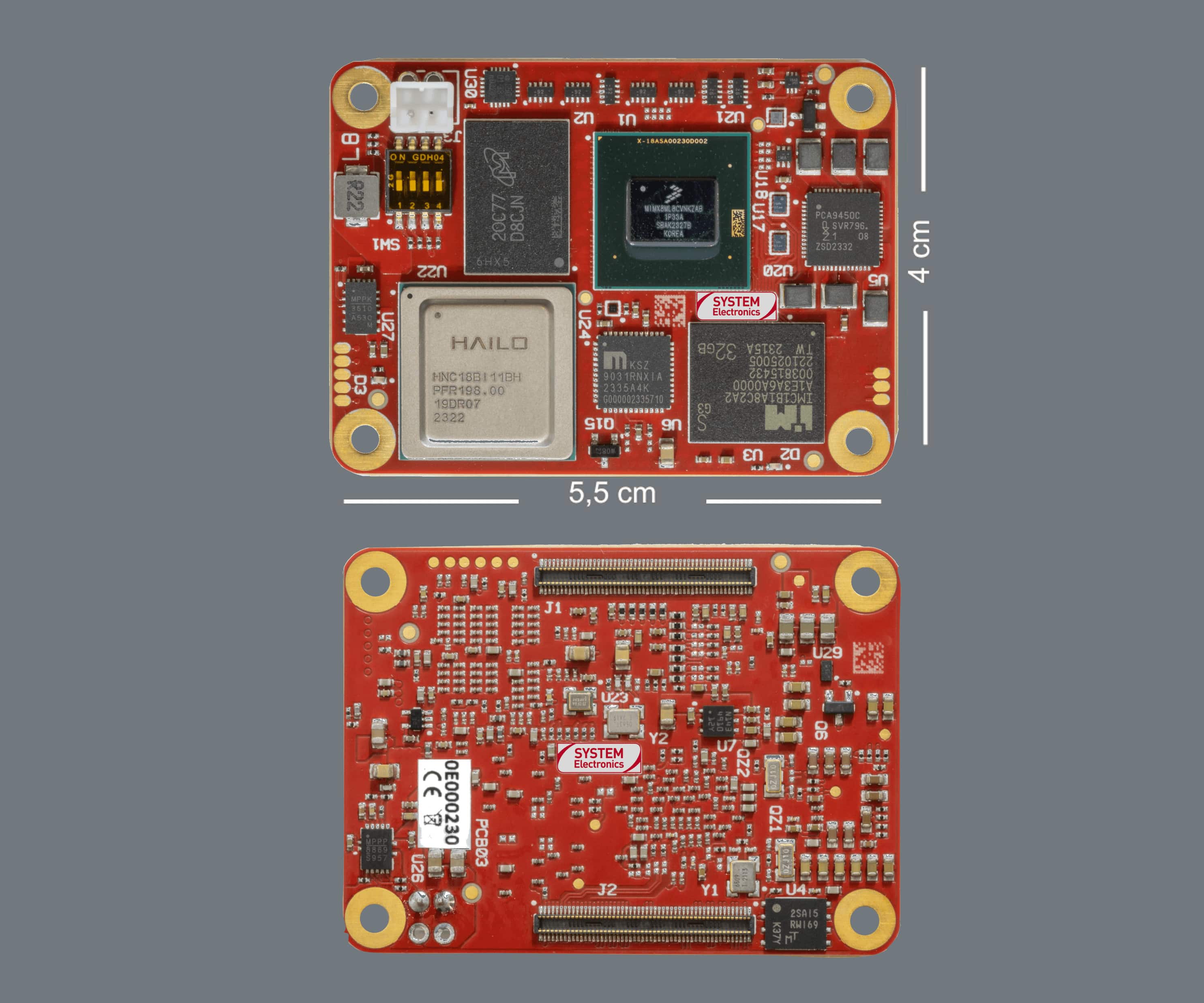

CM4 Form Factor

CM4 Form Factor

High Performance embedded computing SOM for edge AI applications.

HIghlights:

  • CM4 official header
  • i.MX 8M Plus 4x Cortex A53 + Cortex M7, NPU 2.3TOPS
  • Hailo-8 AI processor 26TOPS@3W
  • RAM 8 Gbyte LPDDR4 32 bit
  • eMMC 32 Gbyte
  • Gigabit Ethernet PHY
  • 26 × GPIO HEADER
  • 1 × USB 2.0
  • 2 × UART
  • 3 × I2C
  • 2 × SPI
  • 2 × SDIO
  • 1 × PCM
  • 1 × PWM
  • 1 × HDMI
  • 1 × 4-lane MIPI DSI
  • 1 × 2-lane MIPI CSI
  • 1 × 4-lane MIPI CSI
  • 1 × CANbus
  • Linux YOCTO Kirkstone/LTS and GitHub support
  • Fanless design, 3 W (idle) < Power < 10W (peak)

System Electronics

System Electronics

The core business of System Electronics is the design, customization and production of electronic boards created to streamline the processes and performance of the machine fleet of players in the industrial sector, and more. On the strength of this know-how, System Electronics has been working closely with internationally relevant partners for several years toward the development of new AI-inspired solutions dedicated to a wide range of applications.

Data processing directly on machines, known as edge computing, is becoming increasingly popular due to its advantageous implications in terms of performance, security and latency.

Embedding artificial intelligence solutions directly into industrial machines offers several advantages:

  • faster data analysis, reducing the need to transmit large amounts of data to the cloud for processing;
  • lower latency and greater overall system efficiency;
  • improved data security. By reducing the amount of those transmitted through external networks, potential vulnerability points and opportunities for cyber-attacks are also reduced.

Contact our experts for more information!
